BlueBridge® BR-EVAL-LE4.0-D2A
SOC Embedded Dual mode intelligent module

$249 OEM Evaluation Kit

BR-LE4.0-D2A Summary Spec. (392KB) - Class1, Class2, and Class3 Bluetooth Smart Ready performance wireless communication packet radio modem module compliant to Bluetooth 4.0 Embedded Dual Mode Low Energy. Code space available for client custom applications. Features include: Long-distance communication due to its high RX sensitivity, real time clock, UART, SPI and USB interfaces available to various applications. FCC, IC, CE, RoHS, and Bluetooth compliant ISM 2.4GHz band module. Operating temperature range: - 40~+85°C, Three types of models: With/without antenna, or U.FL connector are provided both with software adjustable transmitter power and various low energy consumption modes. Easy to use AT Command interface. Field upgradeable firmware.

$249 BR-EVAL-LE4.0-D2A Evaluation Kit includes:
BR-DEV-LE4.0-D2A, module on test "Development Board"
BR-MUSB-LE4.0-D2A "USB Evaluation Dongle"
USB Male-to-Mini B Male 1meter cable
Quick Start Guide
BLE AT Command Set User Guide PDF e-mailed.

Note: Due to high initial demand only one kit purchase per client.

Powered by:

Firmware Options

AT Command API.
Libraries to compile in custom "C" Applications.

$499 - Purchase our Technical Support option and we will assist you from initial wireless architecture to reviewing PCB RF layouts.

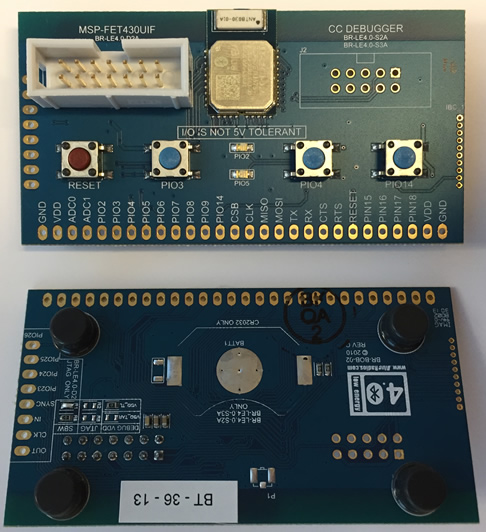

$10 - Purchase BR-BOB "Breakout board" for BlueRadios family of modules.
